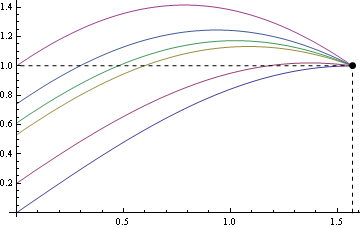

This file was created using Wolfram Mathematica 7 using the following command:
G[theta_, mu_] := Sin[theta] + mu Cos[theta]
followed by:
Plot[{G[theta, 0], G[theta, 0.2], G[theta, 0.53], G[theta, 0.61],
G[theta, 0.74], G[theta, 1]}, {theta, 0, Pi/2}, AxesLabel -> {"\[Theta]", "a/g"},
Epilog -> {PointSize[0.02], Point[{Pi/2, 1}], Black, Dashed,
Line[{{Pi/2, 0}, {Pi/2, 1}}], Line[{{Pi/2, 1}, {0, 1}}]}]
